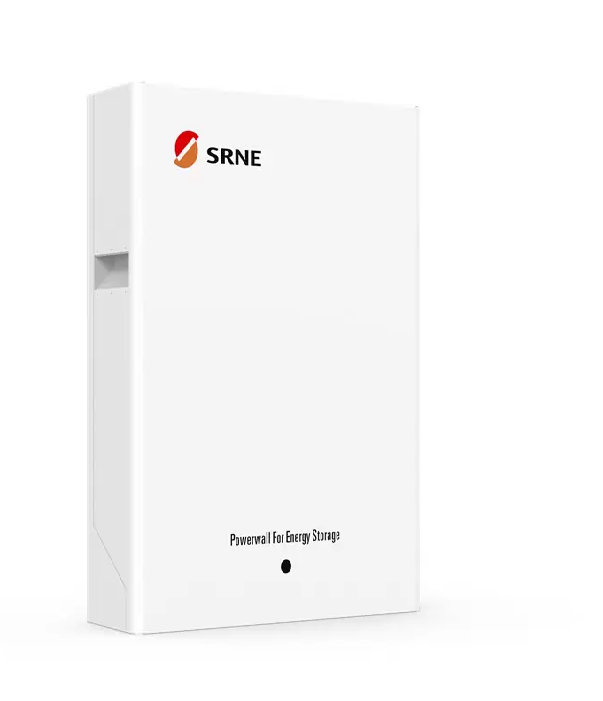

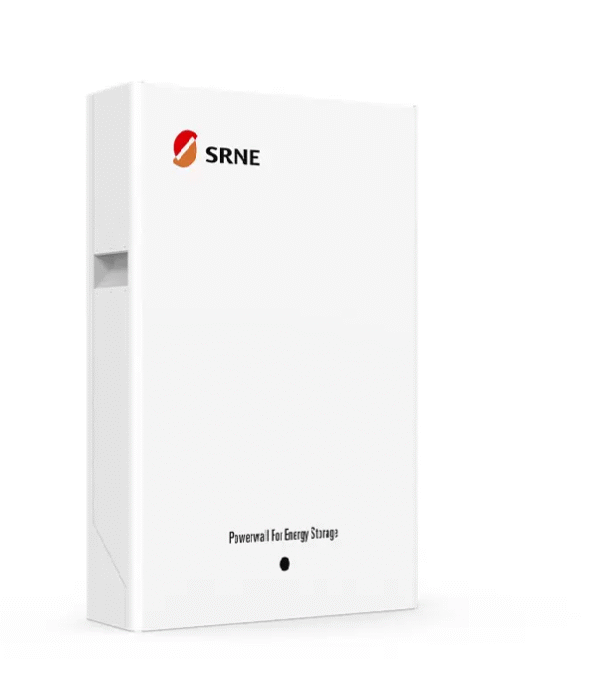

SRNE 5.12kwh Lithium ion battery

Product model SR-EOS48-5.0A-E0 SR-EOS48-10.0A-E0
Rated voltage 51.2V 51.2V
Rated capacity 100Ah 200Ah
Rated energy 5.12kWh 10.24kWh
Weight 52kg 90kg
Dimentions（L*W*H） 620*450*140mm 830*515*140mm
Battery type LFP
Life time(25℃) 20 Years
Life cycles（80% DOD,25℃） 6000 Cycles
Max.charging voltage 57.6V
Over discharge voltage 44.8V
Constant charging current 100A
Constant discharging current 100A
Peak charging current 110A（3S）
Peak discharging current 110A（3S）
Max.Number of parallel 4
Communication interfaces CAN/RS232/RS485
Lithium Battery Standard UN38.3,MSDS,EN55032,EN55024,
EN61000-3-2,EN61000-3-3
Storage time / temperature 6 months @25℃;3 months @35℃;1 months @45℃;
Charging temperature range 0～45℃
Discharging temperature range -10～45℃
Cooling method Natural cooling
Enclosure protection rating IP54
